Mintron MTV-54G10P 1/4 10X Zoom Auto Focus Camera

*  10X optical zoom auto focus camera
*  1/4" COLOR ZOOM CCD CAMERA
*   Mintron MTV-54G10P 10X 1/4 COLOR ZOOM CCD CAMERA
*  ATW: Auto tracking white balance.
*  AWC: One push lock white balance.
*  Mini Small Zoom Camera

MODEL NO.		MTV-54G10N		MTV-54G10P
TVSYSTEM		NTSC			PAL
IMAGESENSOR		1/4-inch CCD Image Sensor
CCDTOTAL PIXELS		~ 270K	~ 320K
SCANNING SYSTEM		525 lines, 60fields/sec	625 lines, 50 fields/sec
SYNCSYSTEM		Internal / VD-Lock
MINIMUM ILLUMINATION	Legacymode	1.5 Lux ( F1.8, 5600ºK)
	Star light Mode	0.03 Lux ( F1.8, 5600ºK )
RESOLUTION		380TVL
S / N RATIO		46dB ( MIN ) / 50dB ( TYP ) (AGC OFF，r=1，APC OFF，Y-OUT)
WHITE BALANCE	Mode	ATW / AWC / FIX ( Zero color rolling)
	Range	3200 ~ 9600 ºK
B.L.C. FUNCTION		Super BLC,48 zone BLC
GAMMA CORRECTION		0.45 /1
AGC		AUTO (18dB max)
ALC		AUTO / FIX
IMAGE NEGATIVE		Select by OSD menu
CROSS LINE		ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION		Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER		AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS		10X optical ZOOM LENS，F1.8~2.9，f=4.2~42.0mm
		Diagonal		W(56.4º) / T(6.1º)
		Hor.		W(46.4º) / T(4.9º)
		Ver.		W(35.6º) / T(3.7º)
ZOOM		100X (10X optical 10X Digital)
FOCUS		Auto / Manual
POSITION		64 Position (Zoom，Focus)
VIDEO OUTPUT		Composite & Y/C output 1.0Vp-p at 75 ohm
CONTROL FUNCTION		Dry Switch , RS-232C/RS-485(Drive option) , OSD control
COMMUNICATION BAUD RATE		9600 BPS
OPERATION TEMPERATURE		-10℃TO 50℃
OPERATIONAL HUMIDITY		within 85%RH
POWER SUPPLY		DC12V±1V / 3.6W(Max)

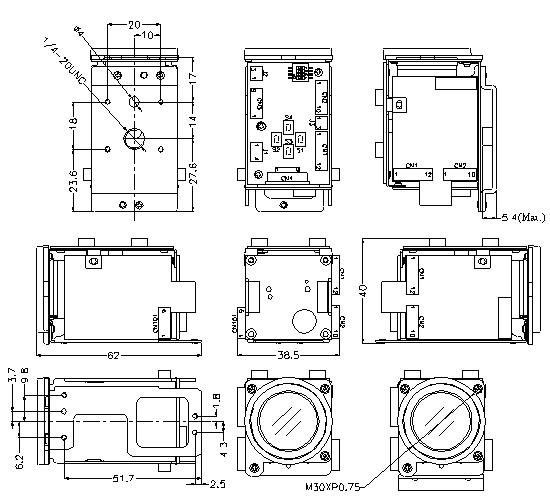

DIMENSIONS		62 mm (L) X 38.5 mm (W) X 40 mm (H)

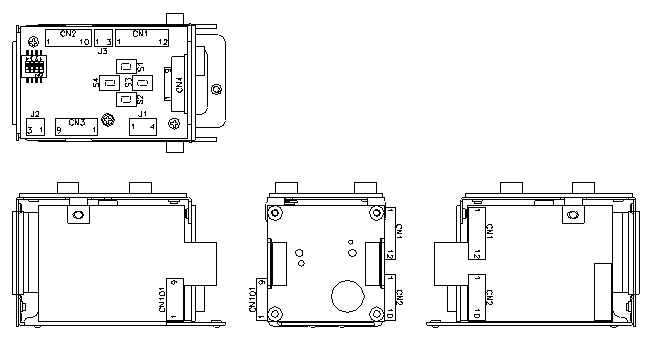

Connector :
