2.4GHz Wireless A/V Receiver

Functions:
Wirelessly receive audio & video signal from 2.4GHz wireless cameras, and display on TV/monitor/MP4/DVR,etc.

Features:
* Standard AV output for TV set, MP4, DVR, etc.

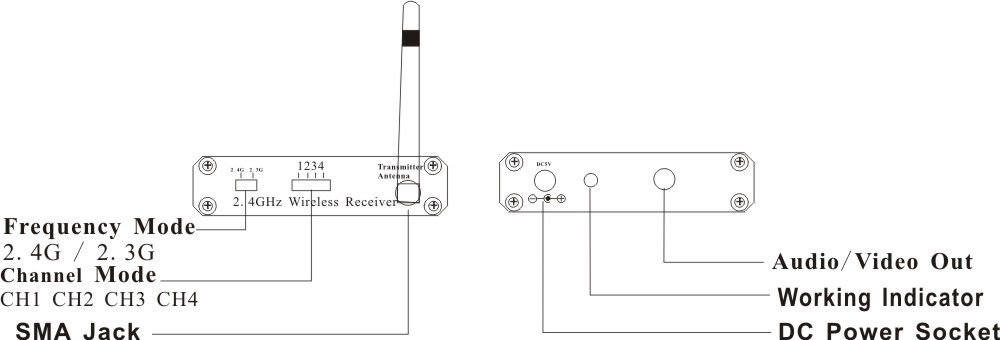

* 2 frequency modes (2.3G & 2.4G) and 8 channels available to avoid interference from Wifi/bluetooth equipments, WLAN network,other 2.4GHz equipments.
* Small size (69 x 68 x 16 mm) & super light (80g only).

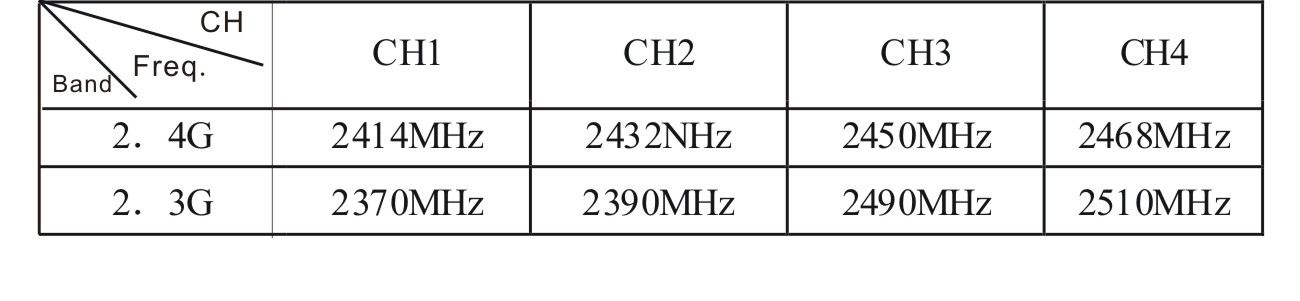

Relationship between working frequency and channel mode

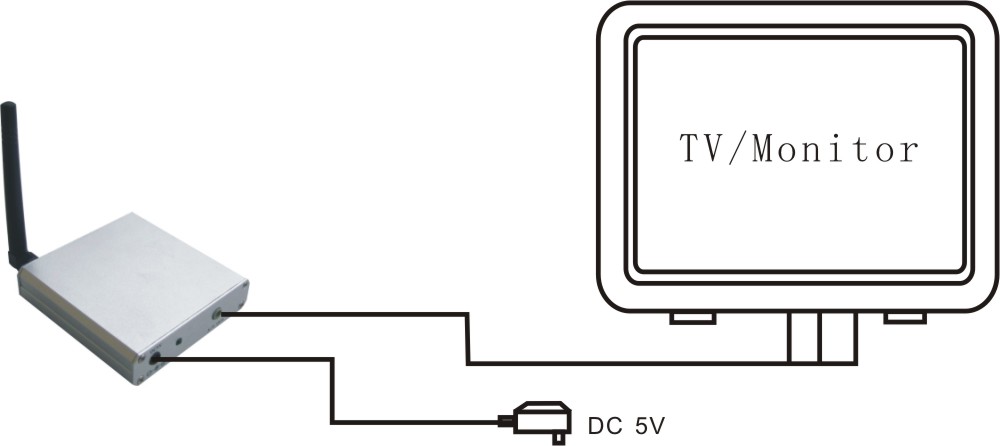

Diagram:

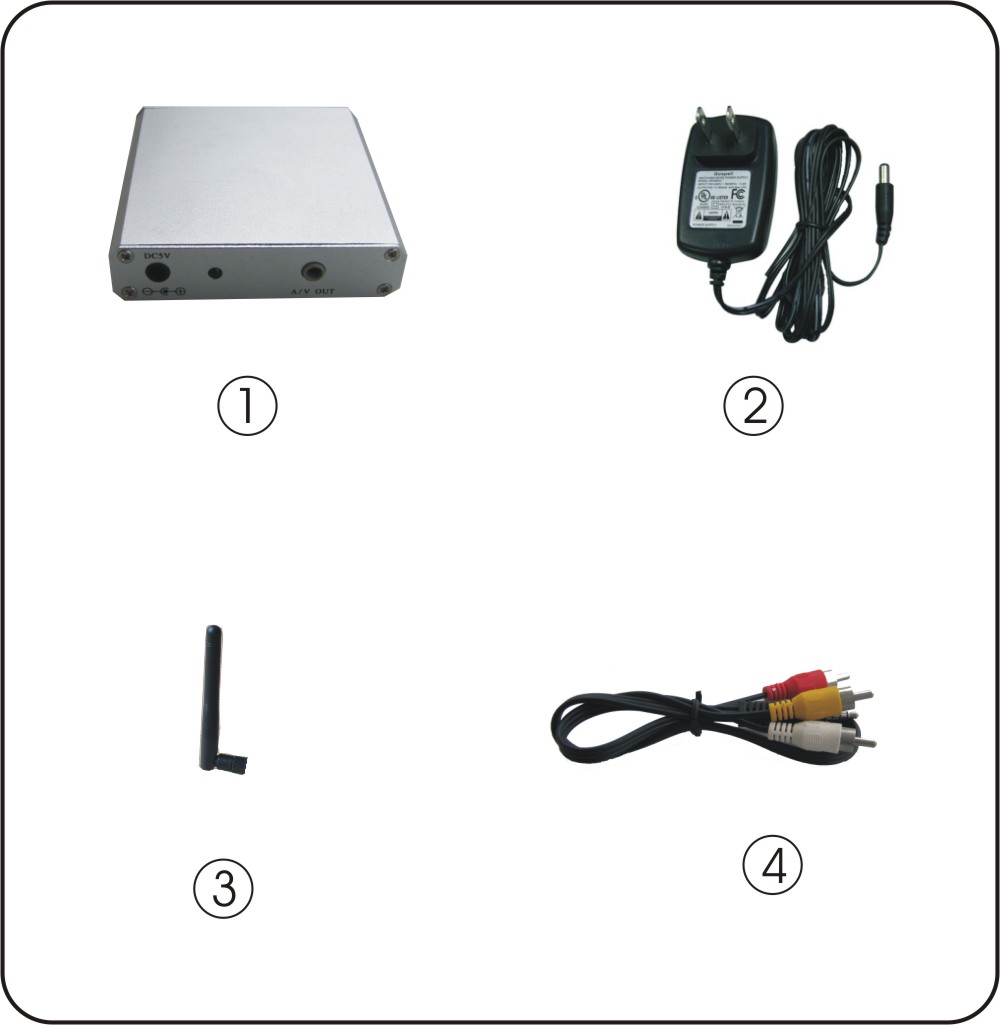

Package Includes:

Specification:

Receiving Frequency	ISM 2,360MHz~2,520MHz
Audio subcarrier frequency	6.0Mhz
Demodulation Type	FM
Antenna	50ohm SMA
Receiving Sensitivity	≤ -85dBm
Video Output Level	1Vp-p@75ohm, S/N>38dB
Audio Output Level	1Vp-p@1Kohm
Power Supply	+5VDC
Consumption Current	180mA
Dimensions(W*L*H)	68*69*16(mm)(Excluding antenna)
Weight	80g
Operating Temperature	10 C~+50 C/+14 F~+122 F
Operating Humidity	85%RH
