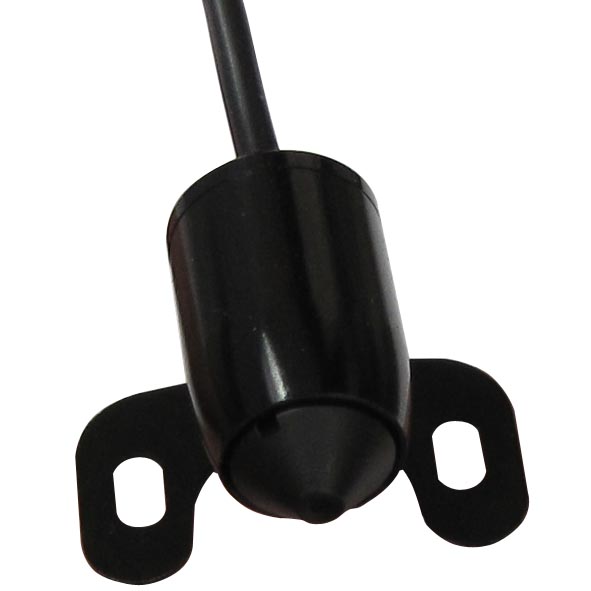

Super mini Security Camera 520TVL 9.5*9.5*12mm;0.008lux


Condition:New
model : MSPY520SUPER



1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR

Features & functions:

It's a ultra small  high definition CCTV camera with excellent night vision.
Size is 9.5X9.5X12mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.


Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)x492(v) PAL:786(H)x576(V)
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm(H) x 3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2:1 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 /55deg
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO  OUT 1.0V p-p/75ohm
SIZE  (L x W x H) 9.5mm x 9.5mm x 12mm
WEIGHT 1g
WORK CURRENT 70mA
POWER REQUIREMENT DC 3.3V-6V
OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC ,less than 90% RH

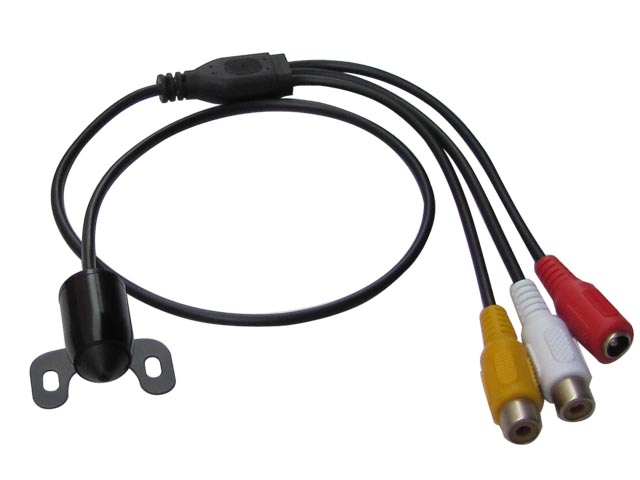

Connection PIN1- Red DC5V  PIN2- Black GND  PIN3- Yellow VIDEO OUT

package:

1*Mini camera ;
1* AC Adapter
1* RCA/BNC cable (Only one cable, if no choice, we will ship at random)
