Product Detail:
1. The video coding format for the second generation h.264 , 16 ways D1 of real-time video, 16 ways audio synchronization, 16 ways independent model alarm input. Support 6 (video playback, work, the cell phone, monitoring, net menu operation, backup) operation, support the number four D1 synchronous playback.
2. Network function is very good, the built-in PPPOE agreement and dynamic domain name; Support UPNP, automatic port mapping; Support electronic amplification; Preview the paint of paint, etc.Support free domain name, the most simple set of networking .
3. Three streaming technology (video, CIF nets pass, QCIF phone network),support the mobile phone monitoring, able to as your wishes,the all things under your control.
Support free domain name, the most simple set of networking .
4. USB 2.0 backup, direct by U disk or USB hard drive to backup.

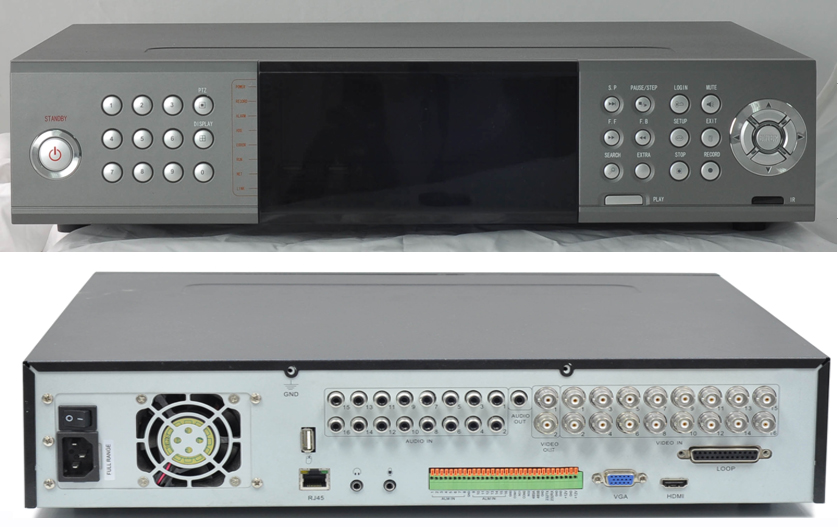

5. 16 Ways D1, 2U case, support HDMI and 8 hard disk
6. Human interface, and USB mouse flexible operation; Support HDMI hd output.
7. Eight SATA hard disk interface. Support a single biggest 2 T hard disk. Ring the option.
SPECIFICATION:
| Item |
Device |
Performance index |
| System |
Language |
English /Chinese |
| GUI |
Graphic menu |
| password |
user password, administrator password |
| Video |
Video in |
4/8/16ch composite video input 1.0V p-p,impedance75¦¸,BNC |
| Video out |
2ch complex video output 1.0V p-p,impedance75¦¸,BNC |
| Video display |
4ch:1/4channel switch 8ch:1/4/9 channel switch 16ch:1/4/9/16 channel switch |
| Video standard |
PAL,25f/s,CCIR625line,50scene NTSC,30f/s,CCIR525line,60scene |
| Audio |
Audio input |
16ch audio input, impedance 600¦¸,RCA |
| Audio output |
1ch audio output, impedance 600¦¸,RCA |
| Basic electricity output |
Linearity electricity |
| Record style |
Audio video recorded simultaneously |
| Audio compression |
ADPCM |
| Picture proceeding and store |
Picture compression |
H.264 |
| Resolution |
D1/HD1/CIF |
| Streaming style |
ISO14496-10 |
| Audio style |
ADPCM |
| Video code rate |
CIF: 384~768 Kbps(optional) HD1:512~1024Kbps(optional) D1:896~1280Kbps(optional) |
| Audio code rate |
32KB/s |
| Data storage |
Support mainstream SATA HDD |
| Alarm |
Alarm input |
4/8/16 alarm input |
| Alarm output |
2 alarm output |
| Serial interface |
Support 2 RS485 |
| Network interface |
RJ45,1000M |
| USB |
Mouse |
USB1.1 |
| Thumb drive |
USB2.0 |
| VGA |
VGA output |
Support 800x600,1024x768,1280x1024,1366x768, 1440 x900 resolution |
| HDMI |
HDMI output |
Support 720P,1080I,1080P |
| Software |
PC playback |
Playback video file |
|
Software upgrade |
Support USB firmware upgrade |
| Others |
Voltage input |
AC:110~240V |
| Power |
16W without HDD |
| Working temperature |
-10----50¡æ | |
